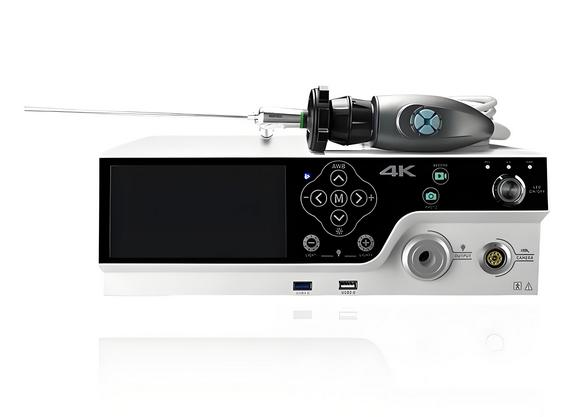

4K FPGA Endoscope Solution

Our company's next-generation medical digital ultra-high-definition endoscope imaging system can match the image effects of the single-chip ultra-high-definition cameras of top foreign brands.

This camera adopts a low-power consumption design, and the heat output is less than half or even less than that of an SDI camera. The system supports basic functions such as USB high-definition video recording, storage, taking photos, and backup. It also has unique functions such as customer-controlled color calibration, scene saving, image tilt correction, logo setting, time display, and upgrade services.

The system is equipped with a network port, which can be used for cooperative development. It can provide preview of endoscope surgery videos for remote mobile phone and computer clients, and conduct image pathological analysis, achieving the real networking, informatization, and integration of the surgical endoscope system.

Specification parameters:

Image sensor size	Two 1/1.8 inches
Image sensor type	CMOS
Scanning mode	Progressive scanning
FPS	60fps
Effective pixels	3840(H) x 2160(V)
Horizontal resolution	≥1700 wire
Vertical resolution	≥1200 wire
Luminance response characteristic	Linear fitting coefficient R2≥0.99
SNR(Signal to Noise Ratio)	≥50 dB
Spatial frequency response	MTF50：34C/°，MTF30：38 C/°
Still image tolerance	≥150
Minimum illumination	1LUX F1.2
Video coding	H.265
HDMI	4 HDMI 2.0,Three support 4K and one 1080
SDI	12G
RJ45	1000M bit/s
USB	4 USB 3.0 on the motherboard,1 is extended by FPC cable
Power supply	DC12V 3A
Power dissipation	＜13W （12V 965mA）
Operating temperature	5℃～40℃
Operating humidity	30%～85%（Non-condensation）
Barometric pressure	700～1060hPa
Output mode	HDMI、12G-SDI、RJ45、USB
Size	Camera：1424mm Motherboard：154.9110mm

Comparison of image effects between medical endoscopy UVC solution and FPGA solution
