RV1106 AI Vision Board

Overview

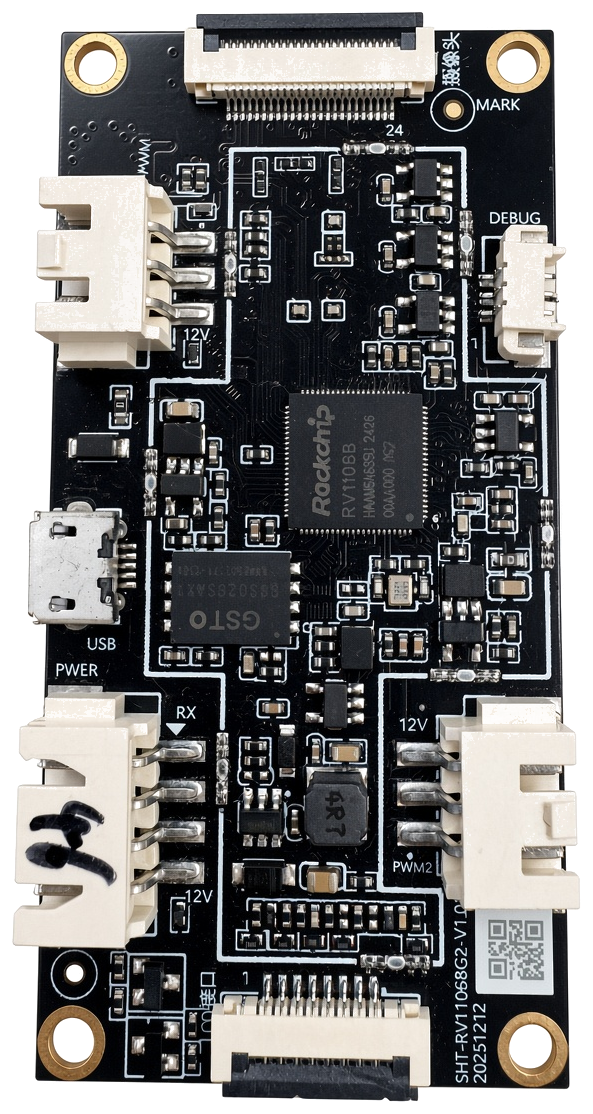

AI vision board based on Rockchip RV1106B G2 (board ID SHT-RV1106BG2-V1.0) for smart IPC, video doorbells, and embedded vision modules. On-board 0.5 TOPS NPU and 128MB memory support human / package and similar edge detection; camera FFC interface simplifies custom module and mechanical integration.

Compute & main controller

Main SoC	Rockchip RV1106B G2
CPU	Single-core ARM Cortex-A7 (NEON / FPU) + dedicated MCU
NPU performance	0.5 TOPS (INT4 / INT8 / INT16 mixed precision)
AI frameworks	TensorFlow / PyTorch / Caffe / MXNet and other convertible models
Typical AI workloads	Edge detection / classification (human, package, lightweight event triggers)

Imaging & encoding

ISP	Hardware ISP: HDR, 3A, 2D/3DNR, sharpening, dehaze, gamma, and more
Sensor input	Up to ~5MP@30fps (depends on module and link configuration)
Video encode	H.264 / H.265 (HEVC) hardware encoding
Camera interface	FFC / FPC connector (silkscreen label for camera)

Memory & storage

Memory	128MB (in-package DDR3L)
System storage	SPI NAND / eMMC per project BOM (mass-production BOM governs)

Interfaces & mechanical

Board ID / revision	SHT-RV1106BG2-V1.0
Debug	DEBUG (UART, etc.), PWM
Power / debug port	Micro-USB (power / debug)
Expansion connectors	Multiple white multi-pin headers (power, I/O, peripherals)
Mechanical	Four corner mounting holes, compact rectangle for in-device mounting

Typical applications

• Smart video doorbell / home IPC
• Edge AI event detection (human, package, etc., via 0.5 TOPS NPU)
• Mass production after custom camera module and ISP tuning

Note: The RV1106G3 series can reach ~1 TOPS NPU; this board is delivered to RV1106B G2 (128MB memory) specifications. Storage and peripherals are confirmed per customer BOM and pilot build.
